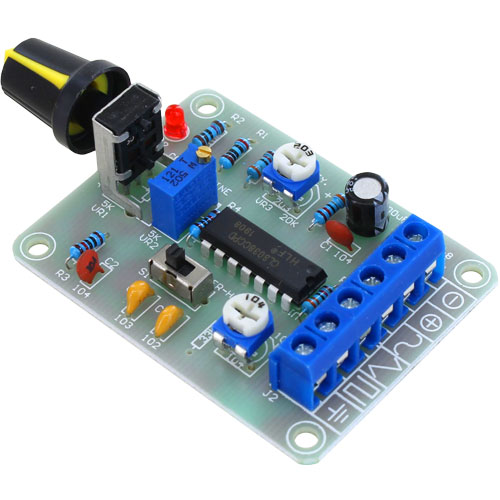

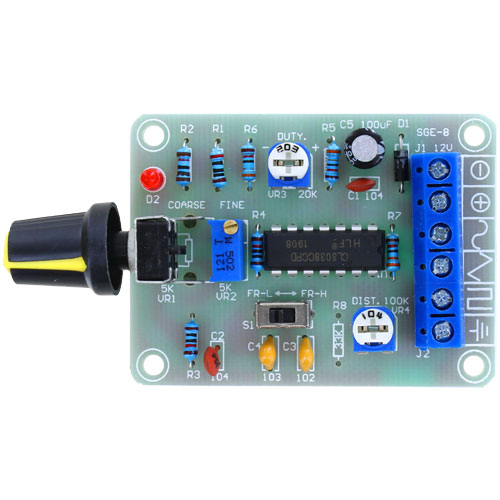

Signal/Function Generator Module Board - 50Hz-50kHz - Sine/Square/Triangle Wave Photo 1 Signal/Function Generator Module Board - 50Hz-50kHz - Sine/Square/Triangle Wave Photo 2 Signal/Function Generator Module Board - 50Hz-50kHz - Sine/Square/Triangle Wave Photo 3
Share this product:
Robotics & Electronics > Test & Measurement

Signal/Function Generator Module Board - 50Hz-50kHz - Sine/Square/Triangle Wave

Item#: 17152
SALE PRICE: $9.95 /each
List Price:$14.99 33% OFF limited time deal
IN STOCK Ships in 1-2 work days
from our California warehouse.
Add to cart to see shipping cost.

We have 22 pcs in stock.
QTY:


This little module board is a game-changer when you need an affordable signal generator for your home or school DIY project.

Get a sine, square or triangle wave signal at an adjustable frequency, anywere from 50Hz to 50kHz.

Board is powered by 12V DC (power adapter not included.)

This is a fully assembled/soldered board so just add your power supply and you are ready to go.

Specifications:

  • Input voltage: 12V DC
  • Output signal: Sine, Square or Triangle wave
  • Output voltage: Approx 11Vpp
  • Output frequency: 50Hz - 50kHz adjustable
  • Uses ICL8038 function generator chip

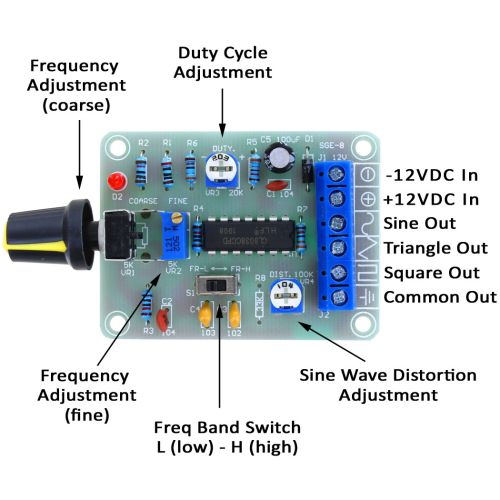

  • Adjustable frequency (coarse and fine), duty cycle and waveform distortion
  • Board Size: 6cm x 4.5cm
