DDS Signal Generator - 1Hz to 8MHz - 7 Waveforms Photo 1 DDS Signal Generator - 1Hz to 8MHz - 7 Waveforms Photo 2
Share this product:
Robotics & Electronics > Test & Measurement

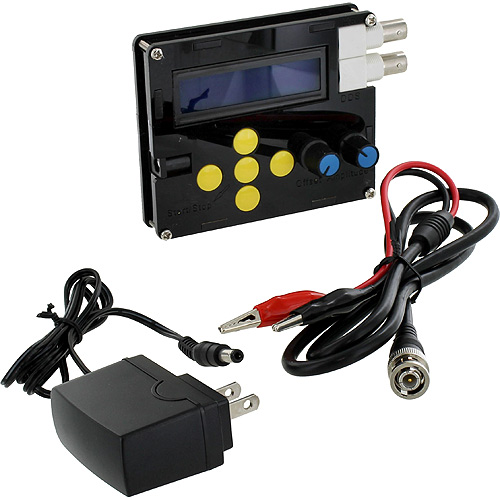

DDS Signal Generator - 1Hz to 8MHz - 7 Waveforms

Item#: 16365   5 star rating 1 customer reviews
SALE PRICE: $54.95 /each
List Price:$79.99 31% OFF limited time deal
IN STOCK Ships in 1-2 work days
from our California warehouse.
Add to cart to see shipping cost.

Only 8 left in stock - order soon.
QTY:


This function signal generator will generate different types of electrical waveforms over a wide range of frequencies. It is used in electronic circuit testing or as a source of signals for varius science or electronics experiments or our Dancing Oobleck Apparatus.

Features

  • DDS Frequency Range: 1Hz-65534Hz
  • DDS Frequency Step: 1Hz
  • Frequency step adjustable to: 1,10,100,1000 or 10000 Hz
  • High-Speed (HS) Frequency Output: 1MHz, 2MHz, 4MHz and 8MHz (discrete steps)

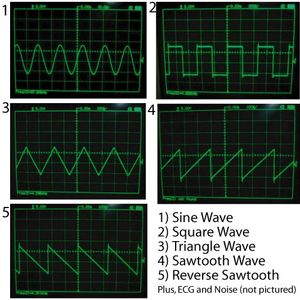

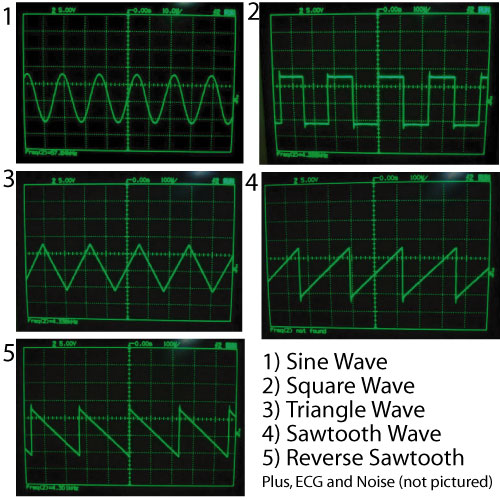

  • DDS signals: sine wave, square wave, sawtooth, reverse sawtooth, triangle wave, the ECG wave and noise wave
  • DDS signal amplitude and the offset amount can be adjusted separately by two potentiometers
  • Offset: 0.5pp-5Vpp
  • Amplitude levels: 0.5Vpp-14Vpp
  • Output impedance: 20-200 ohms
  • Operating voltage: DC9V (adapter included)
  • Includes LCD menu screen
  • Last used configuration memory.
  • Comes with instructions


Age:
14 +
Approx. Ship Size:
6.00 x 6.00 x 2.00 inches
15.24cm x 15.24cm x 5.08cm
Weight:
0 lb 10 oz
0.28 kg


Customer Reviews


5 star rating  Square Wave Generator
Travis from USA, Columbus, Indiana
I needed a square wave generator to trick a control module into thinking there is a speed sensor present. The product has worked well so far.
